Best In Class Softener Performance
SoftPro Water Systems' premier high-efficiency, high flow softener is the new standard for performance. Elite Systems provide superior engineering and build quality. Operation and easy installation is now better than ever!
Superior Engineering Design
- Soft water brine tank refill designs conserves capacity and keeps brine tank clean
- Bypass valve seamlessly integrates turbine meter
- Smart design focuses high-efficiency performance combined with low salt requirements
- Proprietary Multiple Quick-Connect features on the bypass valve, drain line and power cord
High-Efficient Downflow Performance
- Use 75% Less Salt
- 64% Less Operating Costs
Environment Friendly
Incredible performance minimizes water waste and salt usage.
Upflow Regeneration Technology

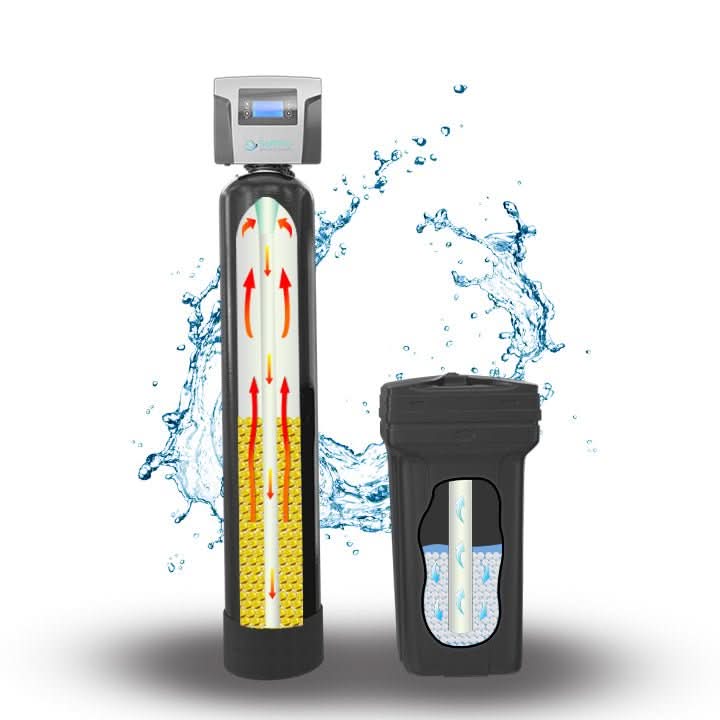

Elite System Design uses reverse flow regen efficiency to drive hardness minerals up through the depleted resin. This double action saves both salt and any unused portion of the resin. Traditional "downflow" softeners lack this efficiency and requires wastes more resin media.
Economical Wise Engineering
- Save 7,500 lbs of Salt
- Save 125,0000 Gallons of Water
- Save up to $2,750 in Operating Costs
Patented Design Advantages
Smart Valve Tech
- Adjustable Backwash Frequency modes conserves up to 2,000 gallons of water per year
- Automatic System Flush refreshes the system prohibits bacteria growth
- Soft Water Quick Recharge performs immediate regeneration to ensure soft water availability
Smart Precision+ Brining
Smart Precision+ Brining conserves salt usage by 30%. Prior to regeneration, the Elite valve intelligence calculates the precise brine amount required depending on depleted resin.
Features
- Large easy to use 4-line LCD display with touch pad
- Practical options for meter, vacation, calendar and clock modes
- Self-charging capacitor keeps date / time of day for 48 hours in power outages
- Valve settings are safeguarded in permanent memory
- Includes neoprene jacket
Straightforward Simple Installation
- Engineered for easy installation with common tools and basic plumbing knowledge. Homeowners, Plumbers and Handymen admire the simple and fast installation.
- Ships Pre-loaded with Media (up to 48k capacity)
- Self-charging capacitor keeps date / time of day for 48 hours in power outages
- Valve settings are safeguarded in permanent memory
- Includes neoprene jacket
True Soft Water Household Savings
- Save up to $479 annually*
- Use 75% Less Soap
- Save 29% on Water Heating
(*Water Quality Research Foundation Battelle Institute Study)
Certifications
- System: IAPMO R&T Certified against NSF/ANSI 44 and CSA B483.1
- Resin: IAPMO R&T against NSF/ANSI 61 for material safety only
- Fibreglass Pressure Tank: NSF/ANSI 44 certified for materials and structural integrity
- Control Valve: NSF/ANSI 44 certified for materials and structural integrity
Specs
- Upgraded 1” porting provides higher flow rates. Increase capacity flexibility.
| System Capacity Grains | Flow Rate | Regeneration Water Usage (Gallons) | Mineral Tank Size | Resin Cu. Ft. |
Brine Tank / Cabinet Size Inches | Salt Capacity (Lbs) |
Ship Weight (Lbs) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| @10 lbs/cu ft | @6 lbs/cu ft (Factory Settings) |
@3 lbs/cu ft |
Service USGPM |
Backwash USGPM |
Clean Water (Factory Settings) |
Problem Water |
|||||
| 22.500 | 18,750 | 11,250 | 8.0 | 1.5 | 34.0 | 49.6 | 8 x 44 | 0.75 | BTS 15.02x34.7/BTR 18.1x34.7 |
BTS 230/ BTR 270 |
93 |
| 30.000 | 25,000 | 15,000 | 10.0 | 2.0 | 43.4 | 64.3 | 9 x 48 | 1.00 | BTS 15.02x34.7/BTR 18.1x34.7 |
BTS 230/ BTR 270 |
110 |
| 45,000 | 37,500 | 22,500 | 12.0 | 2.4 | 62.7 | 90.3 | 10x54 | 1.50 | BTS 15.02x34.7/BTR 18.1x34.7 |
BTS 230/ BTR 270 |
141 |
| 60,000 | 50,000 | 30.000 | 15.0 | 3.5 | 87.1 | 124.6 | 12 x 52 | 2.00 | 20.3 x 37.4 | 385 | 158 |
| 75,000 | 62,500 | 37,500 | 15.0 | 4.0 | 108.9 | 155.8 | 13 x 54 | 2.50 | 20.3 x 37.4 | 385 | 198 |
| 90,000 | 75,000 | 45,000 | 15.0 | 5.0 | 139.2 | 196.2 | 14 x 65 | 3.00 | 23.0 x 40.5 | 550 | 244 |
| 22,500 | 18,750 | 11,250 | 8.0 | 2.0 | 40.5 | 56.1 | 9 x 35 | 0.75 | 13.8 x 23.6 x 43.3 | 225 | 93 |
| 30,000 | 25,000 | 15,000 | 10.0 | 2.4 | 48.6 | 69.5 | 10x35 | 1.00 | 13.8 x 23.6 x 43.3 | 225 | 110 |
Extensive Warranty
- Limited Lifetime Warranty on Control Valve - Industry Best
- Lifetime Warranty on Tank - Industry Best
